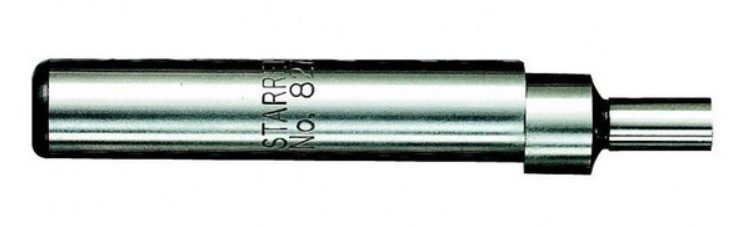

Edge Finder 10mm x 6mm Single Contact

Description:

27MA Series Edge Finder 10mm Body Diameter with 6mm spindle For fast, accurate work location.

Work surfaces may be located easily, quickly and accurately with these edge finders. They work with flat or straight edges, shoulders, grooves, round work, studs, dowels – all can be accurately located with this handy tool. Body and contacts are made of tool steel, hardened, ground and lapped to close tolerances for diameter and concentricity.

How To Use: Edge finders are easy to use. They are placed in a collet or chuck. The worktable is then traversed to obtain contact between the rotating edge finder and the work. Contact will shift to concentric position relative to the body and with very slight additional table adjustment, will move off center with a decided wobble. At this point, the center of the finder is exactly one-half the diameter of the contact from the work edge, permitting accurate location for other machining operations relative to the edge.
